Images in HTML

By now you know enough to write a very nice, text-based home page, but it
is the ability of the Web to provide pictures, technically called images, graphics, pictures
or sometimes icons, that have made it so popular. By adding images to the web pages,

it will add better look and feel as well as complete information about the topic by text
and by visuals. In section, you’ll learn how to place an image on your page and also
how to turn an image into a link to another page.
There are two basic image file formats you will find on the Web. Each is
denoted to the browser by a different suffix. GIF is an acronym for Graphics
Interchange Format and JPEG or JPG (pronounced “j-peg”) are two names to denote
the other format. JPEG is an acronym for Joint Photographic Experts Group, the
organization that invented the format.
GIF format was invented by Compuserve and it’s very popular. The reason is
that it’s a simple format. It’s a series of coloured picture elements, or dots, known as
pixels, that line up to make a picture.
The JPEG format is unique in that it uses compression after it has been created.
For example, if the picture is 10K bytes when displayed, it may be only 4K bytes
when stored.
Let’s start this section with an image of the Sinharaja Rainforest, which has
been stored in your computer hard disk. The name of the image file is 'Sinharaja. jpg.'
Including images is very simple. You employ the <IMG> (for IMAGE) tag. The required
attribute of this tag is SRC, which takes the value of the image file’s URL For example:
<IMG SRC=”Sinharaja.jpg”>


Example 5.9
<HTML>
<HEAD>
<TITLE>Example 5.09</TITLE>
</HEAD>
<BODY>
<H1>Inserting Image</H1>
<P>Sinharaja Rainforest<BR>
<IMG SRC=”Sinharaja.jpg” ALT=”Sinharaja
Forest”>
<P>Sinharaja is the country’s last viable area of
primary tropical rainforest. More than 60% of the trees
are endemic and many of them are considered rare. There
is much endemic wildlife, especially birds, but the reserve
is also home to over 50% of Sri Lanka’s endemic species
of mammals and butterflies. As well as many kinds of
insects, reptiles and rare amphibians. </P>
</BODY>
</HTML>


The SRC attribute determines the source of the image file and takes a URL as
value. We have used a relative URL which shows that 'Sinharaja.jpg' is located in the
same directory as this file or another web site with its location. For example if the
'Sinharaja .jpg' image is located in the web address of www.ucsc.cmb.ac.lk, it can be
inserted as follows.
<IMG SRC=”http://www.ucsc.cmb.ac.lk / Sinharaja.jpg”>


Picture of Sinharaja in the Web Page

Alternative Images

The <ALT> (ALTernate image) attribute is now required. You can put some
advisory text with the use of this attribute. This text is displayed when the mouse
pointer is placed on the image. You should get into the good habit of including ALT
tags. Visitors using text-based browsers or who have turned off images in their browsers
will not be able to see the image. However, they would be able to read the image
description through the ALT attribute.
<IMG SRC=”Sinharaja.jpg” ALT = “Image of Sinharaja Rainforest”>

Aligning Text & Images

Image can be place at a specified position, in relation to the paragraph. In this
case few attributes can be used like in Figure 5.10, such as 'ALIGN' and 'WIDTH'.

Example
<HTML>
<HEAD>
<TITLE>Example 5.10</TITLE>
</HEAD>
<BODY>
<H1>Aligning Text & Images</H1>
<P> The text aligns with the top of the
image.</p>
<IMG ALT=”Galle Port” ALIGN=TOP WIDTH=360
SRC=”Galle Port.jpg”>
<H2><FONT SIZE=6><B> Galle Port <B>
</FONT></H2>
</BODY>
</HTML>

Alignment
The ALIGN attribute is used to align other HTML elements such as text around
the image. Thus, <IMG SRC="Galle Port .jpg" WIDTH="360" ALIGN="TOP"> will
align the image to the top and text to its bottom.
<IMG ALIGN=TOP SRC=”image.gif”>
ALIGN can also take “TOP”, “BOTTOM” or “MIDDLE” as value. These
align the text to the top, middle or bottom of the image.

TOP                The text aligns with the top of image
TEXTTOP       The image is aligned with the top of the
                        tallest text in the line.
MIDDLE         The text aligns with the middle of the
BOTTOM       The text aligns with the bottom of the
LEFT              The image aligns with the left margin,
                       and the text wraps around the right.
RIGHT           The image aligns with the right margin,
                       and the text wraps around the left.


Special Formats

Comments
As your HTML pages grow, so will their complexity. Maintaining such complex
pages can be quite a problem if there is no way to add documentation to these
files.
Fortunately, HTML provides tags through which you can add comments to
various sections of your scripts.The starting comment tag is <!— (that’s the ‘lesser
than’ sign followed by an exclamation mark and two dashes) and the ending tag
is —>.
<!-- This tag displays the text in the source
but not in the Internet Explorer display -->


Example
<HTML>
<HEAD>
<TITLE>Example 5.08</TITLE>
</HEAD>
<BODY>
<H1>Special Formats</H1>
<!— - Comments line - This text will not
display in the Netscape display - —>
<BLOCKOUT>This text block indented and
display as a separate paragraph.
</BLOCKOUT>
<PRE>
When display this text
will look exactly as it
does here ....
</PRE>
<ADDRESS>
I can be contacted at
html@html-book.lk
</ADDRESS>
</BODY>
</HTML>


Block quotes

If you wish to introduce some large body of text and make it stand out from
the rest, you should put it between <BLOCKQUOTE> - </BLOCKQUOTE>. The
enclosed text will be indented from the left and right margins and also adds space at
the top and bottom quite like this paragraph.
<BLOCKQUOTE>
This is tag display the text block indented and as a
separate paragraph.
</BLOCKQUOTE>


Pre-formatted Text

<PRE>—</PRE> The <PRE> tag retains the pre-formatted appearance of
                             the text in the HTML file, including any line breaks or
                             spaces. Text is usually displayed in a fixed width font.


Address
<ADDRESS>—</ADDRESS> The <ADDRESS> tag is used for information
                           such as addresses, authorship, and so forth. The
                           text is usually italicized and in some browsers it
                           is indented.


The <ADDRESS> - </ADDRESS> tag is a logical formatting element. You
should use this to include any address. This should NEVER be used for physical
layout as it may be rendered differently by the browsers.
<ADDRESS>
I can be contacted at
info@ucsc.cmb.ac.lk
</ADDRESS>


Ordered List

<OL>—</OL> The <OL>  tag encloses an ordered list of <LI> items.
                                           Typically ordered list are rendered as numbered list
START=                              value The values of the starting number in the ordered list
TYPE=Option                     Specifies how ordered items are to be marked.

(A|a|I|i|1)                             A= uppercase letters,
                                           a=lowercase letter,
                                           I=uppercase Roman numerals,
                                           i=lowercase Roman numerals,
                                          1=Digits, the default is 1.


The <OL> (Ordered List) helps keep an organized list with numbers or symbols
^Eg. 1" 2" 3 '''''' or i, ii, iii or a, b, c& where in the list items. If the ranking of items is
desired, we employ <OL> for ordered lists and </OL> as ending tag. To place
individual list items, you should use the <LI> (List Item).
Example"
<OL><L1> Item 1 </OL>
<OL><L1> Item 1
<L1> Item 2
</OL>
An ending tag for a list item </LI> is not required.
Numbers are the default bullets in ordered lists but you can change them using
the TYPE attribute of <OL> tag. This attribute takes one of the two values:
Example,
<OL TYPE = 1 START = 1>
can be used, Number list can also specify the numbering type and starting
number.


For example,
<OL TYPE = i START = 3>


Un-ordered List

<UL>—</UL> The <UL> tag enclose an an ordered list of <LI> items.
Typically ordered list are rendered as symbolic list.
TYPE=Option TYPE specifies how ordered items are to be marked.
(DISK|CIRCLE|SQUARE)


<UL> - </UL> are the starting and ending tags of Unordered lists. List items
are included using the <LI> tag.
Eg : <UL>
<L1> Item 1
<L1> Item 2
</UL>
Unordered lists also support the TYPE attribute that takes disc, circle or square
as its value.

For example,
<UL TYPE = DISC>


Definition List

<DD> The <DD> tag formats text to be used as relative
definitions in the <DL> list

These lists are great for making glossaries. As you know, a glossary consists of
a term and a definition. For HTML Definition lists, which are enclosed between <DL>
and </DL> (Definition List), you have to use <DT> (Definition Title) to indicate the
Term and <DD> (Definition Description) to denote the definition.
For example,
<DL>
<DT> Title 1
<DD> Description 1
<DT> Title 2
<DD> Description 2
</DL>


Font Colour attributes



The COLOR attribute takes either the hexadecimal colour value or just the
colour name. Some common colour names are Blue, Green, Red, Yellow, White,
Black, Cyan, Magenta, Pink etc.
<FONT COLOR ="#RRGGBB">


Colours for monitors are in expressed in RGB, Red (RR), Green (GG) and
Blue (BB). The combinations of these colours yield other colours. The RGB values
can be expressed in percentages, integer values 0-255 or hexadecimal values 00 - FF.
Since we are concerned about colours on web pages we shall concentrate on
hexadecimal representation. In this notation, we use numbers 0 to 9 and alphabet
A to F.
0 means no colour and F means full colour.
Each colour in hexadecimal notation takes six digits, where the first two represent
RED, the second two, GREEN and the last two BLUE colour


For example,
<FONT COLOR ="#8F8FBD"> (for light steel blue colour)
<FONT COLOR ="blue"> ^for blue colour&


Notes :
• In HTML with <FONT> tag you can use size and COLOUR tags
together.
<FONT COLOR ="White" SIZE = 5>
• When you use colours relative hexadecimal values can be obtained
from Table 5.1
• If the colour value is not available in Table 5.1 it can be obtained from
'Adobe Photoshop'


Colours, Values & Names

List in HTML

When we create HTML documents, we all understand the importance of lists
in the document. They are an indispensable tool for cataloguing and indexing various
objects and events.
Two kinds of lists are very common and used by us regularly. The Ordered
Lists help us keep an organized inventory wherein the list items are ranked while in
Unordered Lists, the classification is not important and the list items do not occur in
any assorted order.


Example

<HTML>
<HEAD>
<TITLE>Example 5.07</TITLE>
</HEAD>
<BODY>
<H1>Ordered and Unordered</H1>
<H2>Ordered List</H2>
<OL TYPE=1 START=1>
<LI> First Item
<LI> Second Item
<LI> Third Item
</OL>
<H2>Unordered List</H2>
<UL TYPE=CIRCLE>
<LI> First Item
<LI> Second Item
<LI> Third Item
<UL TYPE=SQUARE>
<LI> Nested Item 1
<LI> Nested Item 2
<LI> Nested Item 3
<UL TYPE=DISC>
<LI> Nested Item 1
<LI> Nested Item 2
<LI> Nested Item 3
</UL>
<LI>Back to Square Nested Item 4
</UL>
</UL>
</BODY>
</HTML>


List in Web Document

Friday, September 6, 2013

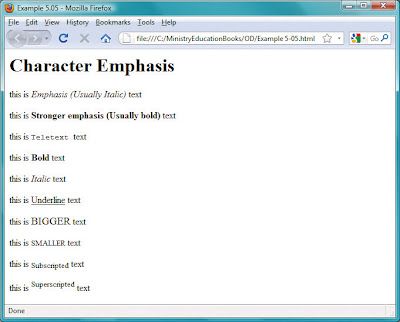

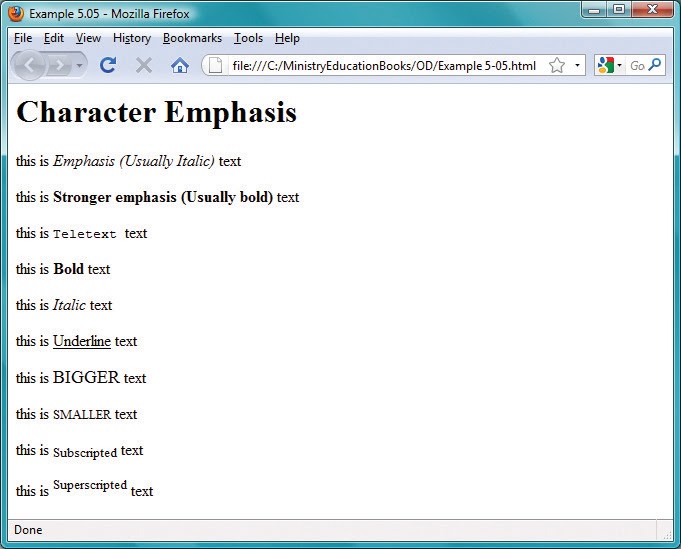

Character tags

<EM>                    Emphasis (Usually Italics)
<STRONG>         Stronger emphasis (Usually bold)
<B>                       Boldface where available (Browser may render
                              line in another manner if boldface is notpossible)
<I>                         Italic (may be rendered as started in some cases)
<U>                       Underline (Maybe rendered as started in some cases)
<BIG>                   Bigger text
<SMALL>            Smaller text
<SUB>                 Subscripted text
<SUP>                 Superscripted text
<BLINK>              Flashing text


Font Size and Color

<FONT>—</FONT> The <FONT>   tag used to control the appearance
                                                             of the text it encloses.
SIZE =                                                 Value Size of the font in points, it can be
                                                             absolute or relative.
                                                             Specifying SIZE=5 sets the font size to

                                                             5 points Specifying SIZE=+5 set the
                                                             font size 5 points larger tha default tag.
COLOR =                                            Colour The colour of the enclosed text.
FACE=                                                 List The font faces of the text. Multiple font face

                                                              can be specified, separated by commas.
                                                              The browser
                                                               will try to render the text in the order specified
                                                               by the list.

In HTML, various properties of text can be changed using the <FONT> tag. Font size and colour can be modified using the appropriate attribute of this tag.
         SIZE: Changes Size.
         COLOR: Changes the colour.


Font Size attribute

<FONT SIZE = n >

Font size can be changed in two different ways.
The size attribute takes a number from 1 to 7 as its value with 1 as the smallest
and 3 the default.


Value of n 1 and 2 for Small Size
Value of n 3 for Normal Size
Value of n 4 to 7 for Large Size.


Also, you can use relative values, +n and -n, for increasing or decreasing font
size relative to the current size. For increasing relative font size use values +1 to +6
and for decreasing use -1 to -6.

<FONT SIZE = +n > or <FONT SIZE = -n>

Relative changes in font size with <FONT SIZE = + 2> or <FONT SIZE = - 2>
increment or decrement the font size by 2 point scale relative to the size specified in the
nearest.


Example

<HTML>
<HEAD>
<TITLE>Example 5.06</TITLE>
</HEAD>
<BODY>
<H1>Font size and colour</H1>
<FONT SIZE=4 COLOR=”#0000FF”>
<P>This font is in Blue</FONT>
<FONT SIZE=6>
<P>This font is in size 6</FONT>
<FONT SIZE=3 COLOR=”black”>
<P>This font is in size 3 and Black color</
FONT>
</BODY>
</HTML>
Changing size and colour of fonts



Monday, September 2, 2013

Character Style

<B>—</B>                        The <B> tag displays the enclosed text in the bold type.
<BIG>—</BIG>                The <BIG> tag increased the size of the enclosed text. The
                                           exact appearance of the text depends on the browser and the
                                           default font size.
<BLINK>—</BLINK>       The <BLINK> tag causes the enclosed text to blink on and off.
<CITE>—</CITE>            The <CITE> tag is used for citation and usually displayed in italics.
<CODE>—</CODE>      The <CODE> tag is used for text taken from code for a

                                           computer program. It is usually displayed in a fixed width font.
<EM>—</EM>                 The <EM> is used to emphasize text. The enclosed text is
                                           usually displays in italics
<I>—</I>                            The <I> tag italicizes the enclosed text.
<KBD>—</KBD>             The <KBD> is used for text made for appear as if it is came
                                             from a typewriter or keyboard.Text is displayed with a fixed

                                             width font.
<SAMP>—</SAMP>        The <SAMP> tag displays text in a fixed width font.
<SMALL>—</SMALL>    The <SMALL> tag decreases the size of the enclosed text.
                                             The exact appearance of the text depends on the browser and the

                                             default font size.
<STYLE>—</STYLE>       Contains information that identifies the style sheet in use.
<SUB>—</SUB>               The <SUB> tag displays the enclosed text as a subscript.
<SUP>—</SUP>               The <SUP> tag displays the enclosed text as a superscript.
<TT>—</TT>                      The <TT> tag displays text in a fixed width, teletype style font.
<U>—</U>                          The <U> tag underlines the enclose text. The <U> tag should
                                              be avoided because it will confide users with hypertext, which
                                              is typically underlined.
<VAR>—</VAR>                The <VAR> tag is used for text that represents a variable and
                                              is usually displayed in italics.


Example
<HTML>
<HEAD>
<TITLE>Example 5.05</TITLE>
</HEAD>
<BODY>
<H1>Character Emphasis </H1>
<P>this is <EM>Emphasis (Usually Italic)
</EM> text
<P>this is <STRONG>Stronger emphasis
(Usually bold)</STRONG> text
<P>this is <TT>Teletext </TT> text
<P>this is <B>Bold</B> text
<P>this is <I>Italic</I> text
<P>this is <U>Underline</U> text
<P>this is <BIG>BIGGER</BIG> text
<P>this is <SMALL>SMALLER</SMALL> text
<P>this is <SUB>Subscripted</SUB> text
<P>this is <SUP>Superscripted</SUP> text
</BODY>
</HTML>


Text in HTML code can be dressed up or changed the styles in various ways so that it’s displayed differently by the browser. Using character tags, text can be made Bold, Underlined, Italicized, Struck-through etc. Moreover, you can make text both italicized and bold at the same time. Always remember to put the end tag
of the nested element before the end tag of the enclosing element. There are many tags that perform such embellishments on text. These tags can be either Physical Tags or Logical Tags.


Text styles in HTML

Horizontal Rules

Example
<HTML>
<HEAD>
<TITLE>Example 5.04</TITLE>
</HEAD>
<BODY>
<H1>Horizontal Rules</H1>
<HR COLOR=#FF0000>
<P><HR size= 4 width=80% COLOR=#CCFFCC>
<P><HR size=10 width=40>
<P><HR size=10 width=40 ALIGN=”LEFT”>
<P><HR size= 5 width=20% ALIGN=”RIGHT”>
<P><HR size= 4 width=80% NOSHADE>
<P><HR size=10 width=40 NOSHADE>
</BODY>


To separate block of text in a document you can use the simple but useful <HR> tag which puts a straight line across the page. There is no ending tag for the horizontal rule. The very inclusion of <HR> introduces the separating the line.

When you use Internet Explorer you can change the size, width, colour and alignment of the horizontal rule using various attributes.


Size
The SIZE attribute defines the thickness of the horizontal rule. It changes the thickness by specifying the number of pixels with the value.
eg : <HR SIZE = 5>


Width
WIDTH attribute defines the length or width of the rule. A value is required for this attribute. This value can be expressed in pixel numbers or percentage, which determines the length based on the width of the browser window.
eg :
<HR SIZE = 8 WIDTH = 50> (Length of the line in Pixels)
<HR SIZE = 8 WIDTH = 50%> (Length of the line in percentage)


Alignment
ALIGN attributes align horizontal rules using one of the three values for ALIGN attribute, “CENTER” (align to the centre), “LEFT” (align to the left), or “RIGHT”
(align to the right).
eg :
<HR SIZE = 8 WIDTH = 50 ALIGN = "CENTER">
<HR SIZE = 8 WIDTH = 50% ALIGN = "LEFT">
<HR SIZE = 8 WIDTH = 50 ALIGN = "RIGHT">
The line is aligned to the centre even without specifying ALIGN attibute. This is because ALIGN = "CENTRE" is a default attribute value for the <HR> tag.


No Shade
NOSHADE attribute is used to shade the line and they have this 3D kind of
effect. If you don’t want this, use the NOSHADE attribute. NOSHADE takes no
values.
eg :
<HR SIZE = 10 WIDTH = 40 NOSHADE>

Line Break

<BR> The <BR>                        tag forces a line break in the text.
CLEAR=option                          Causes the next line to start at the spot in which
(LEFT|RIGHT|ALL| NONE)               the specified margin is clear


<BR> tells your browser to go to the beginning of the next line. (BR stands for line BReak). <BR> acts in the same way as the ENTER key on your keyboard. When you press the ENTER key, the cursor goes to the beginning of the next line. With <BR>, the browser is also told to go to the beginning of the next line. The <BR> tag has no end </BR> tag because it doesn’t need to. Just the presence of <BR> adds
a line break.


1. When you display the file in a browser, you will find that the line breaks we had introduced (by hitting ‘Enter’ key) are ignored by the browser. The browser ‘wraps’ the text only at the end of the window space. This is because HTML has a special Line Break Tag, <BR> (BR for Line Break). You should use this tag to introduce any line breaks.

2. When you want to display your paragraph aligning to left, to right or to centre, the ALIGN attribute can be used with <P> tag. The ALIGN’ attribute takes one of the four values: LEFT, RIGHT, CENTER, or
JUSTIFY. Following shows some of the examples.
<P ALIGN = "RIGHT">
<P ALIGN = "CENTER">
<P ALIGN = "LEFT">

Paragraphs and Line Breaks

Paragraphs and Line Breaks

<P>—</P>                          The <P> tag defines the beginning and endin of a paragraph of text.
ALIGN=Option                    The alignment of the text in the paragraph
(LEFT| RIGHT| CENTER)


<H1> First Level Heading </H1>
<H2> Second Level Heading </H2>
<H3> Third Level Heading </H3>
<H4> Fourth Level Heading </H4>
<H5> Fifth Level Heading </H5>
<H6> Sixth Level Heading </H6>
When you use these tags, no other tags can be used inside these tags and if they are used, they will be ignored. Heading or sub heading can be aligned to the left, right or centre using 'ALIGN' attribute. If it is necessary <H1 ALIGN = CENTER> Title of the heading </H1> can be used to align the title at the centre of the web page. These values can be assigned to ALIGN and their 'LEFT', 'RIGHT' and 'CENTER'.
Paragraphs and Line Breaks
When you create web pages you can use <P> for paragraphs, sections and other phrases and to mark the end of such section you can use </P> ending tag. The Ending tag, in this case, is not compulsory; however there are some cases where the ending tag cannot be omitted. Such tags will be discussed later in this section. <P> for Paragraph, tells your browser to insert a blank or empty line and then begin a new line (a new paragraph). <BR> (for Line Break) tells the browser when a line has ended while <P> tells the browser to leave a blank line and begin a new paragraph.

 Example
<HTML>
<HEAD>
<TITLE>Example 5.03</TITLE>
</HEAD>
<BODY>
<H1>Paragraph and line Demo</H1>
<P>This is first Paragraph </P>
<H2>This is heading 2</H2>
<P>The paragraph two<BR>The paragraph three</P>
</BODY>
</HTML>
